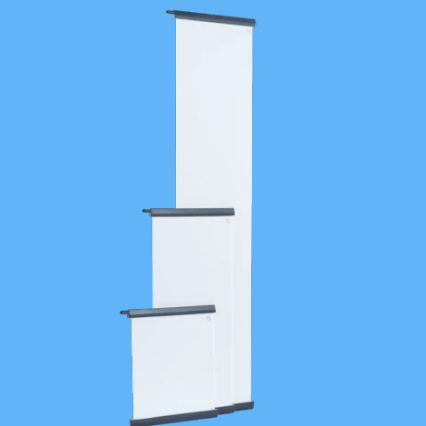

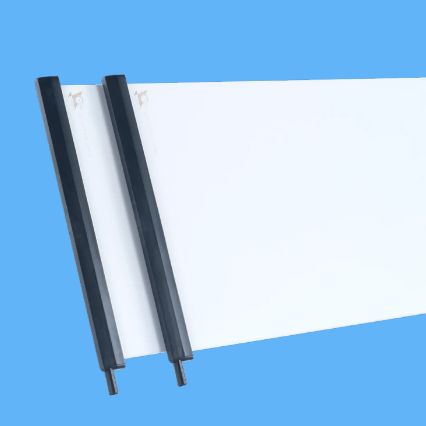

Flat Sheet Ceramic Membrane

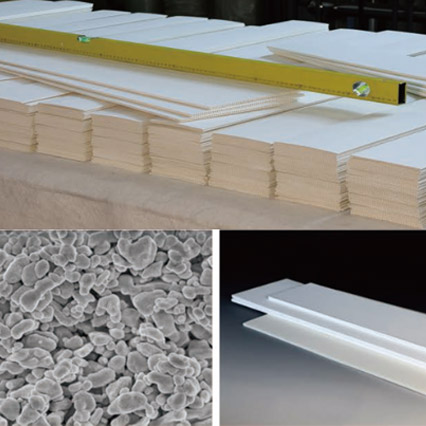

The flat ceramic membrane is a new type of high temperature plate porous ceramic membrane, which is prepared by high temperature sintering process using inorganic materials such as alumina. Our Ceramic flat sheet membrane can offer exceptional efficiency and durability compared with the organic film. Ceramic flat membrane produced by one of professional flat sheet membrane manufacturers in China has the advantages of good chemical stability, good reliability, long service life and strong anti-pollution ability.

Click to Buy

PDF Download

Advantages of Flat Sheet Ceramic Membrane

Long life and no degradation
Strong resistance to acid, alkali and to organic solvent; Suitable for all kinds of wastewater containing solvents and chemicals
Strong hydrophilic and better anti- pollution property
Better Mechanical properties, no broken wires phenomenon of hollow fiber membrane
Easy to wash lower cleaning frequency, suitable for all kinds of membrane cleaning methods
Low operating cost and energy saving

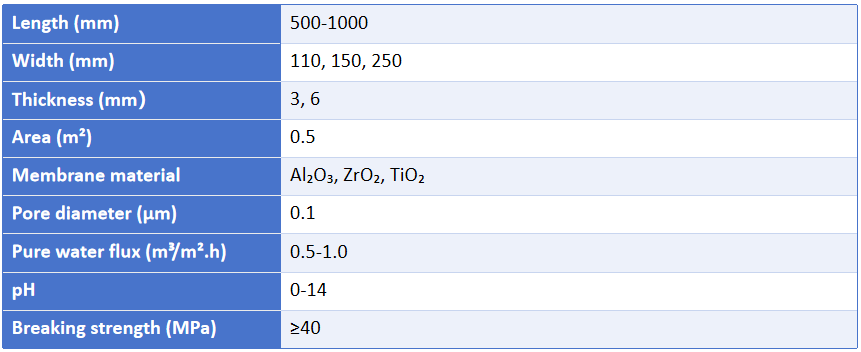

Flat Sheet Ceramic Membrane Specification

Length (mm)	500-1100
Width (mm)	110, 150, 250
Thickness (mm）	3, 6
Area (m2)	0.5
Membrane material	Al₂O₃, ZrO₂, TiO₂
Pore diameter (μm)	0.1
Pure water flux (m3/m2.h)	0.5-1.0
pH	0-14
Breaking strength (MPa)	≥40

Ceramic Flat Sheet Membrane Application Area

Membrane Bioreactor (MBR)
Industrial wastewater treatment (e.g. paper mill wastewater treatment)
Seawater desalination pretreatment
Municipal wastewater treatment
Domestic sewage treatment
Hospital wastewater treatment
Landfill leachate treatment
Pretreatment of RO system

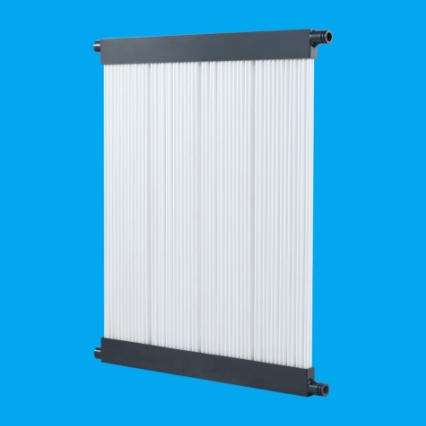

Specification and Parameters of Flat Sheet Ceramic Membrane

Model	2.5㎡ flat membrane module	5㎡ flat membrane module	50㎡ flat membrane module	100㎡flat membrane module
Size (LWH) mm	460400900	750560170	17003021790	17407901700
Number	10	46	100	200
Specification	2506500	1103510	25061000	25061000
Weight (kg)	26	32	800	1100
Frame material	SUS304
Aeration tube material	PVC
Collection pipe	PPR & DN32	PPR & DN32	PPR & DN50	PPR & DN50
Filtering method	Negative pressure suction
Operation pH	2-12
Operation temperature	≤ 60℃

Case of Ceramic Flat Sheet Membrane

Case 1: Sewage treatment in Industrial park
Project: 1000 t/d
Process

Project
Membrane area 2600㎡, Membrane size: 250*6*1046mm, Membrane material: Al₂O₃, Membrane pore size: 100nm

Case 2: Wastewater treatment in food industry

Project: 200 t/d
Project location: Guangdong
Inlet water:
High oil content, SS, heavy metal ion, COD and BOD, nitrogen, phosphorus
Project
Membrane area 300㎡, Membrane size: 250*6*1046mm, Membrane material: Al₂O₃, Membrane pore size: 100nm
