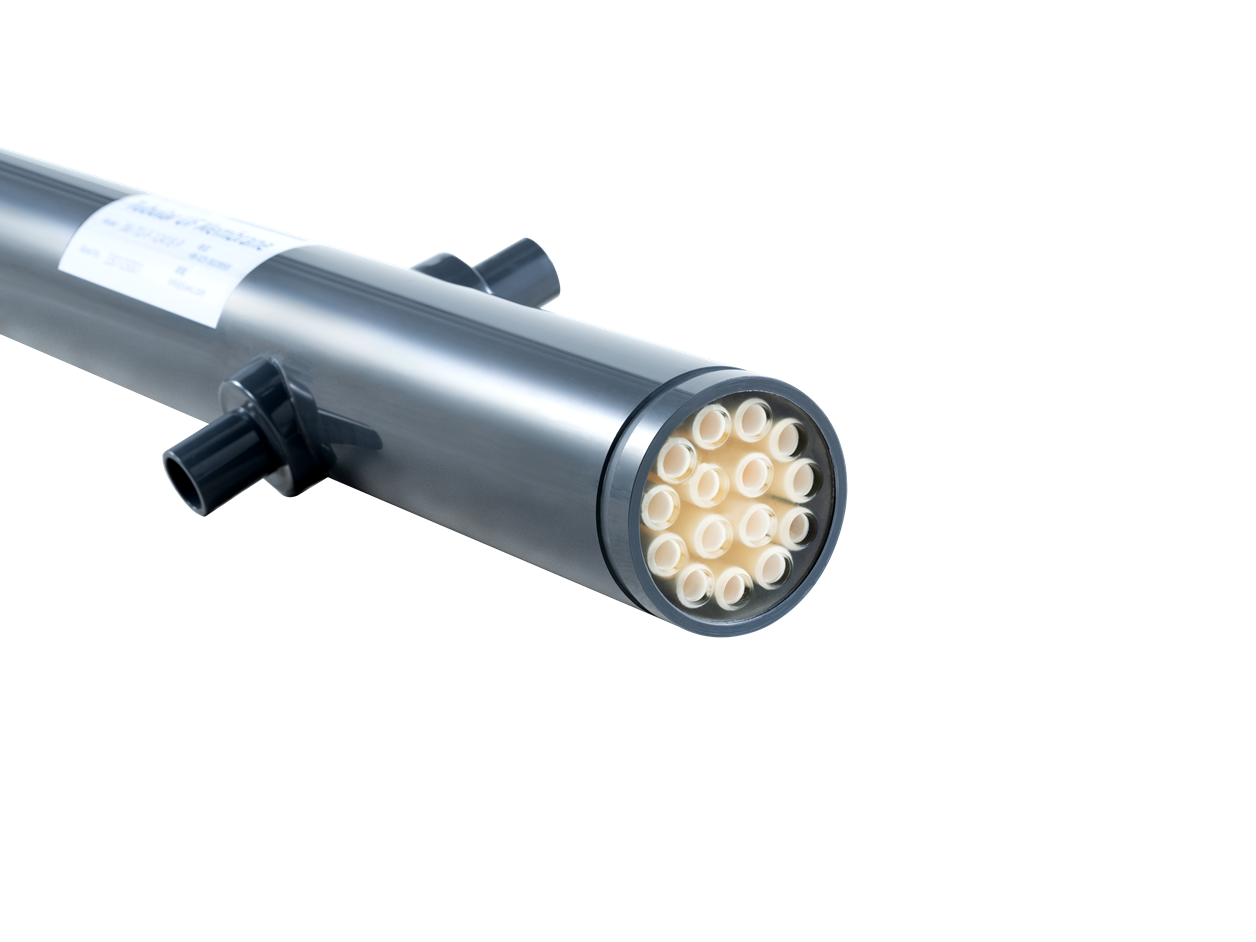

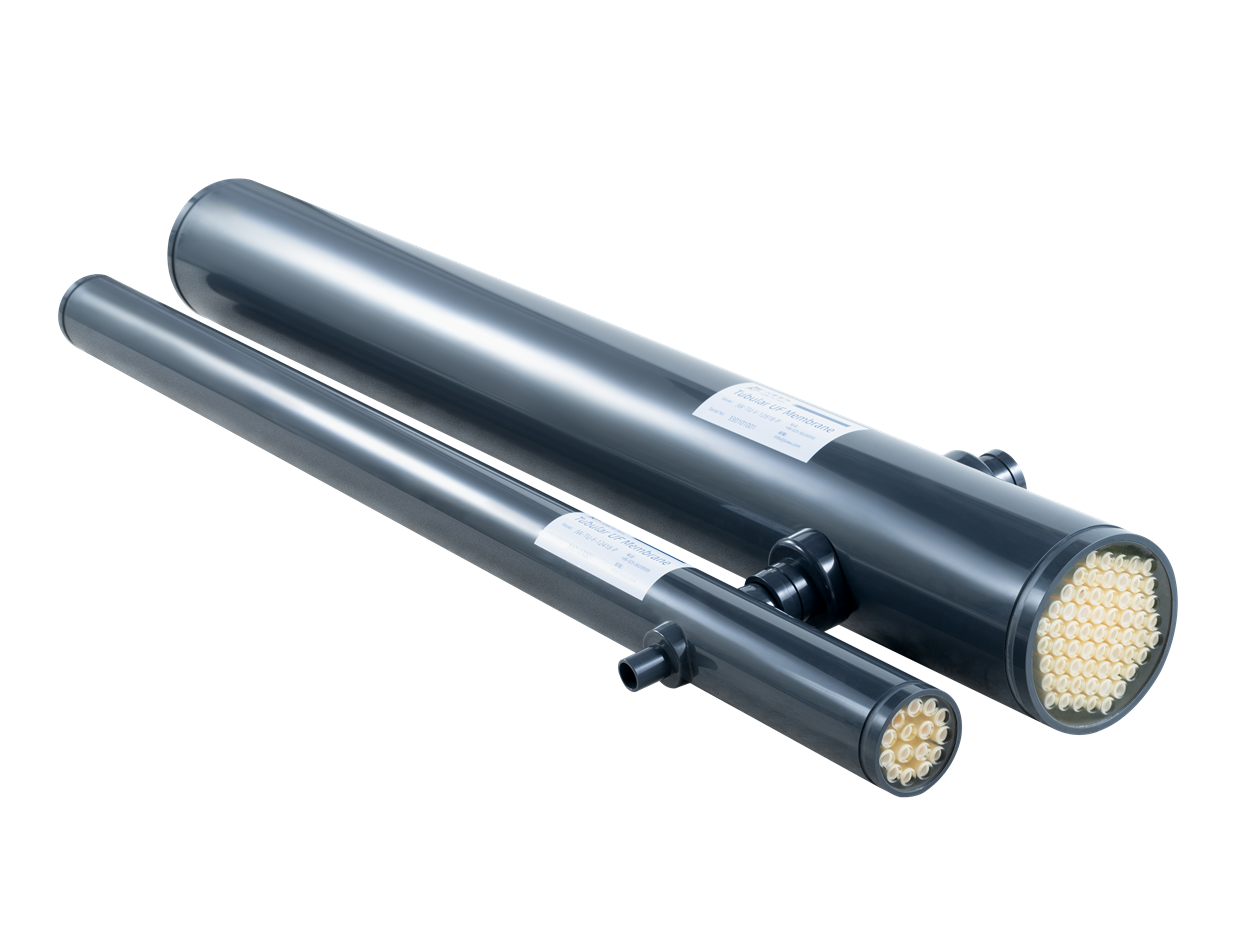

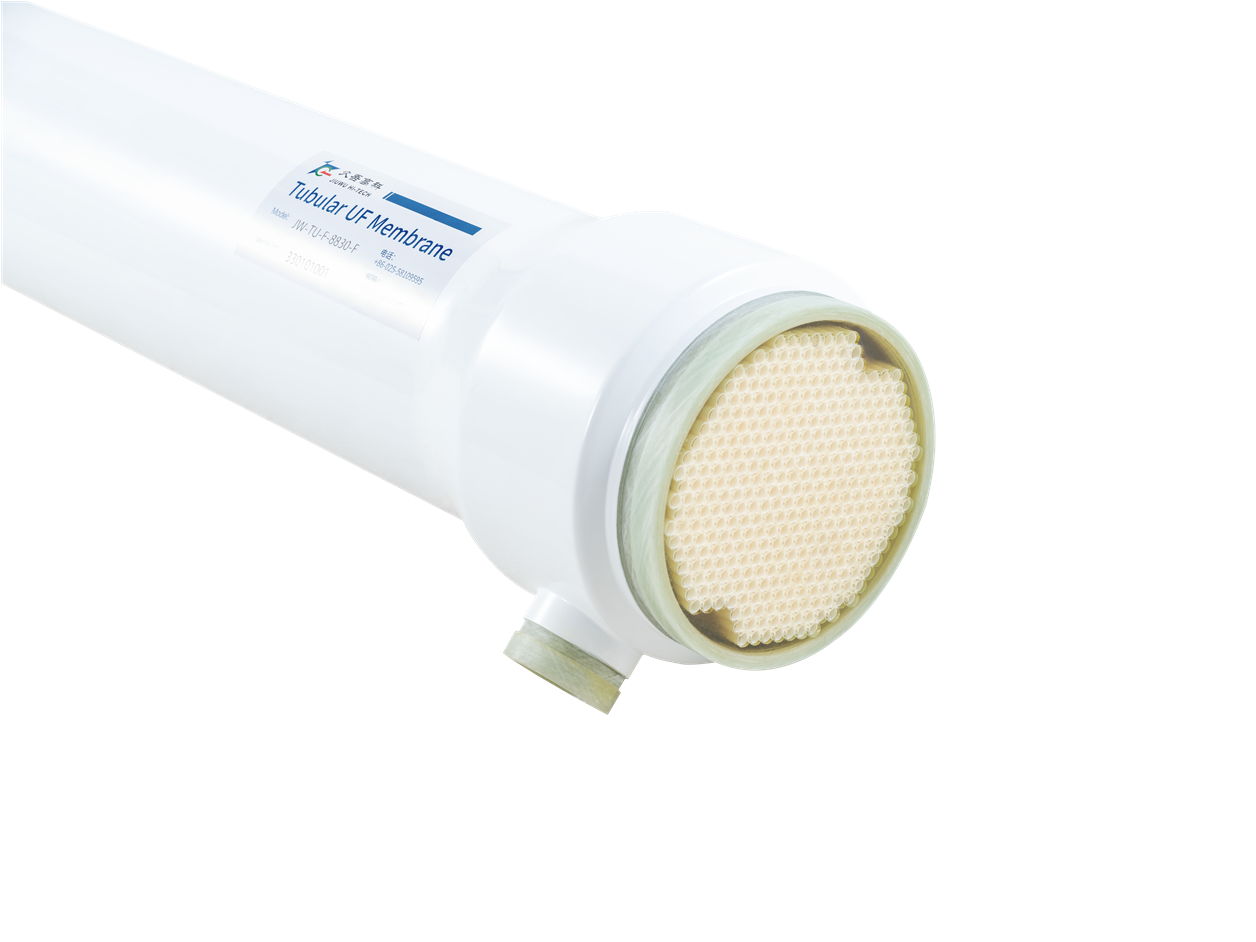

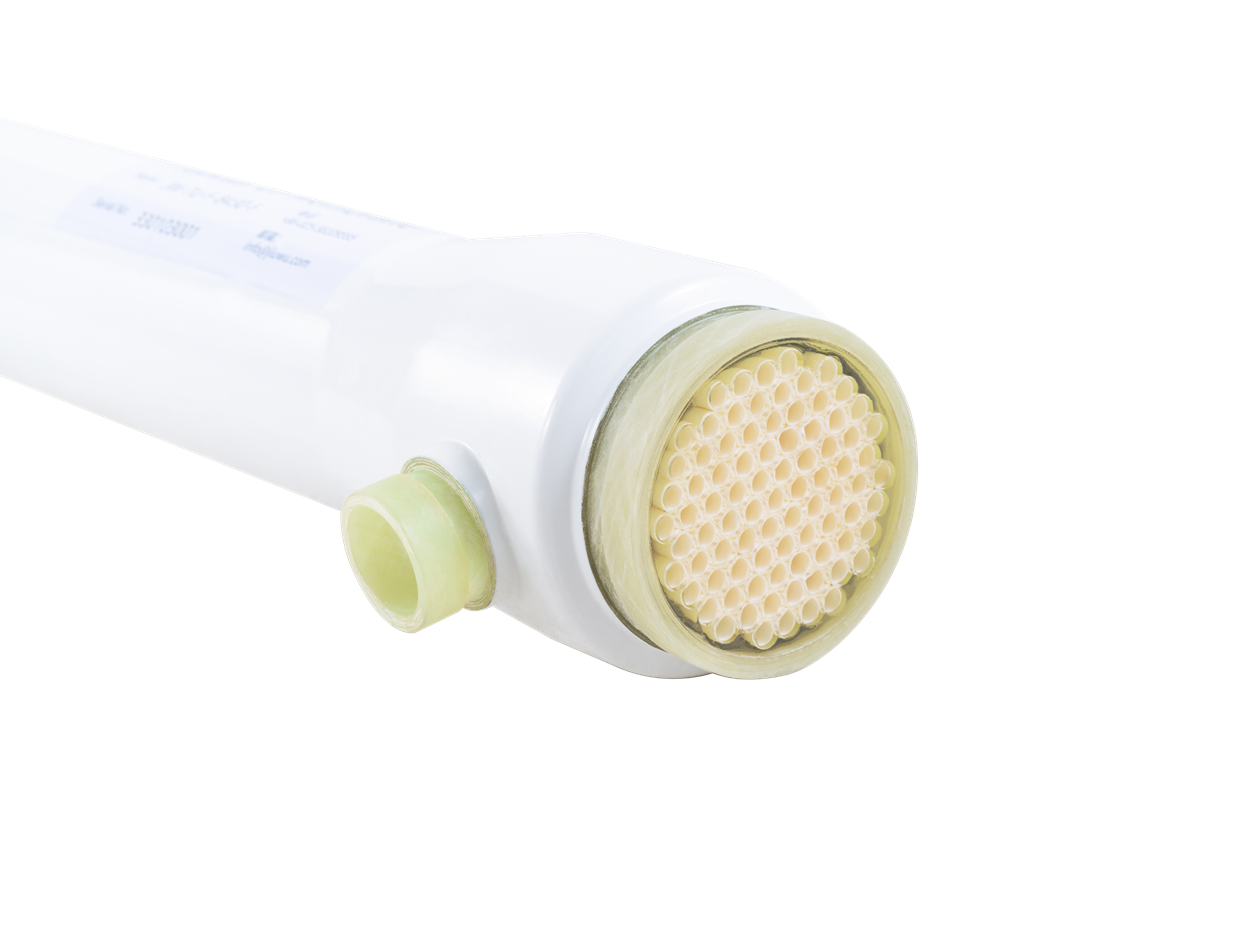

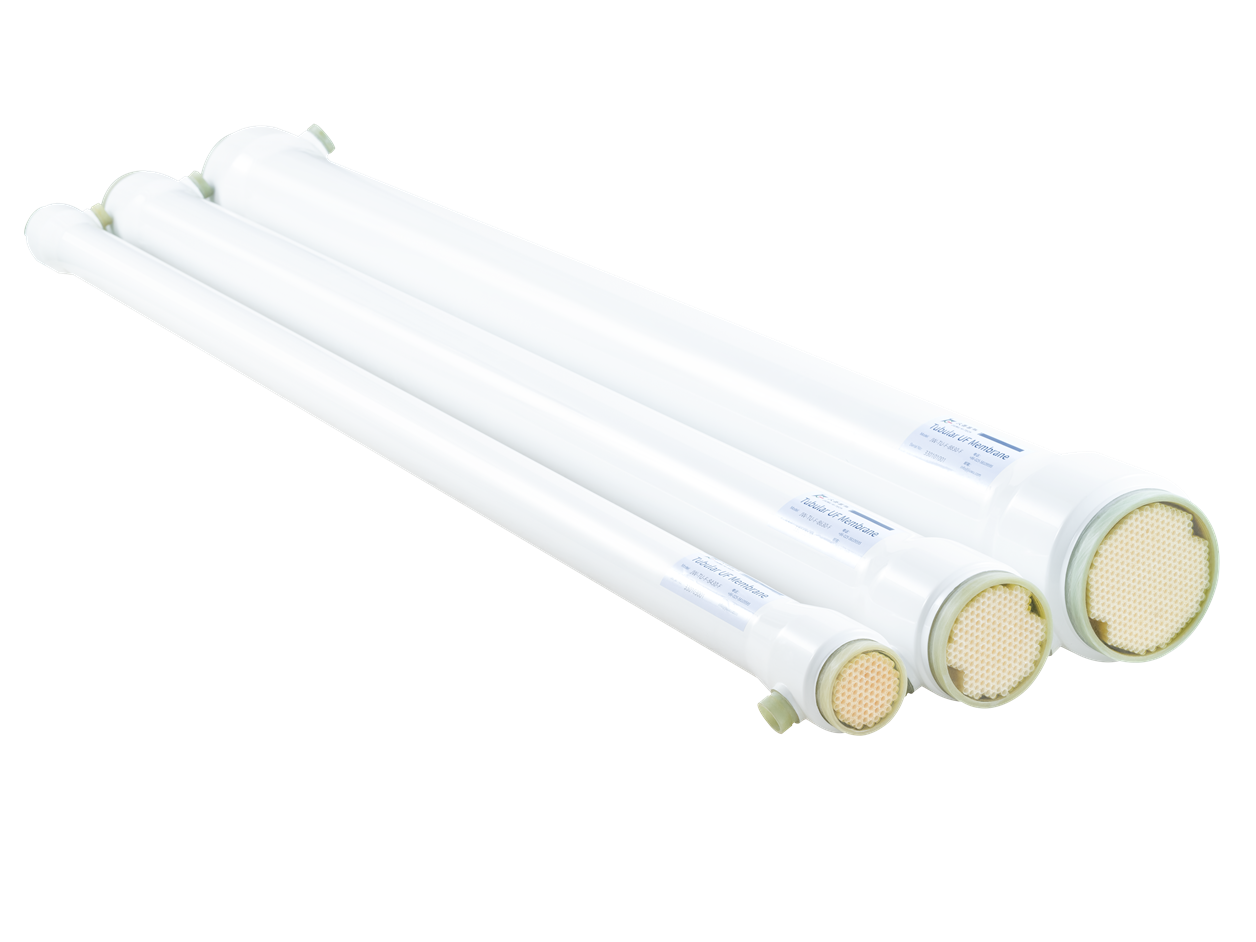

Organic Tubular Membrane

    Jiuwu organic tubular membrane is categorized into two types: sintered tubular membrane and non-woven tubular membrane, involving materials such as PVDF, PES, etc. The separation accuracy of the membrane layer covers 10kD~0.2 μm. The inner diameter of membrane tubes, of which non-woven tubular membranes are available in 6mm, 8mm and 10mm, and sintered tubular membranes are available in 8mm, 12.7mm and 25.4mm. The size of the modules are 4-inch, 6-inch and 8-inch, in addition, non-standard membrane module with different materials and specifications can also be customized. The products have been used in processes such as hardness removal of softening, powder cleaning, acidic and alkaline liquid reuse, as well as in applications such as Landfill leachate , reinjection water for oilfield, and plant extraction process.

    微信图片_20251225114758_1160_96(1).pngClick to Buy

Organic Tubular Membrane


PDF Download


Advantages of sintered tubular membrane:

Special membrane layer mosaic structure, giving excellent wear resistance;

Strong anti-pollution, backwashable, more stable operating flux;

Open flow channel, suitable for high viscosity, high solid content system;

Excellent chemical resistance, more widely used, easy to clean.
